Design flushing
Front dimension Ø38 mm
The obverse form is rounded
IP Front-end protection IP66, IP67, and IP69K
Mounting hole Ø 30.5 mm
Front baffle color sand gray
Front baffle material metal
The building material is metal
Rotation position 3
Switch Action Maintenance (a) - Rest (a) - Maintenance (a)
Switch Angle 45° Left / 45° right
It weighs 0.106 kg
Switching element
The maximum. Number of switch components 6
function

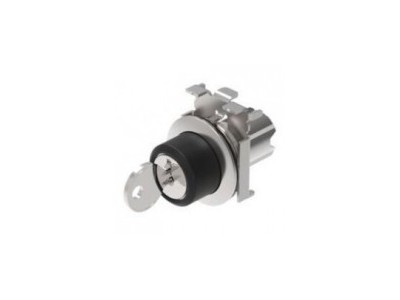

Keylock switch
